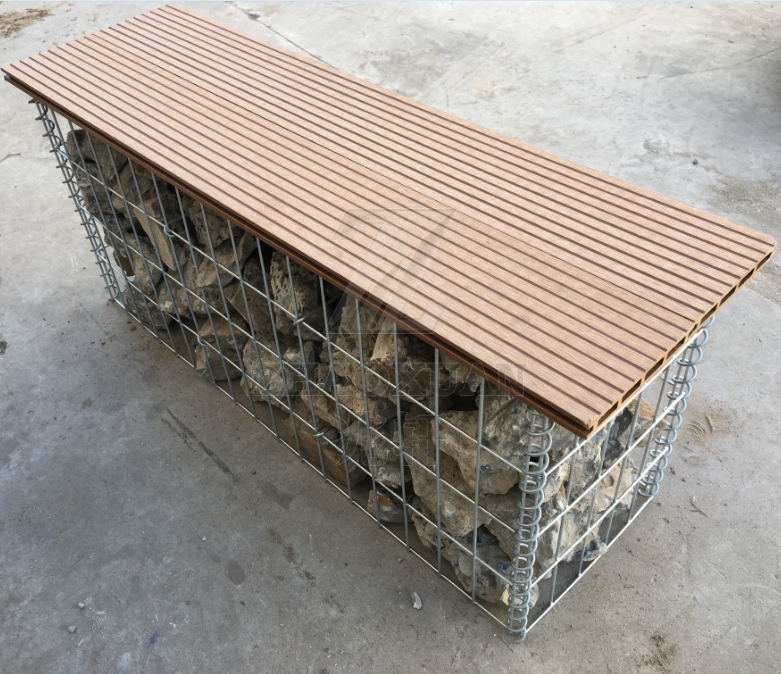

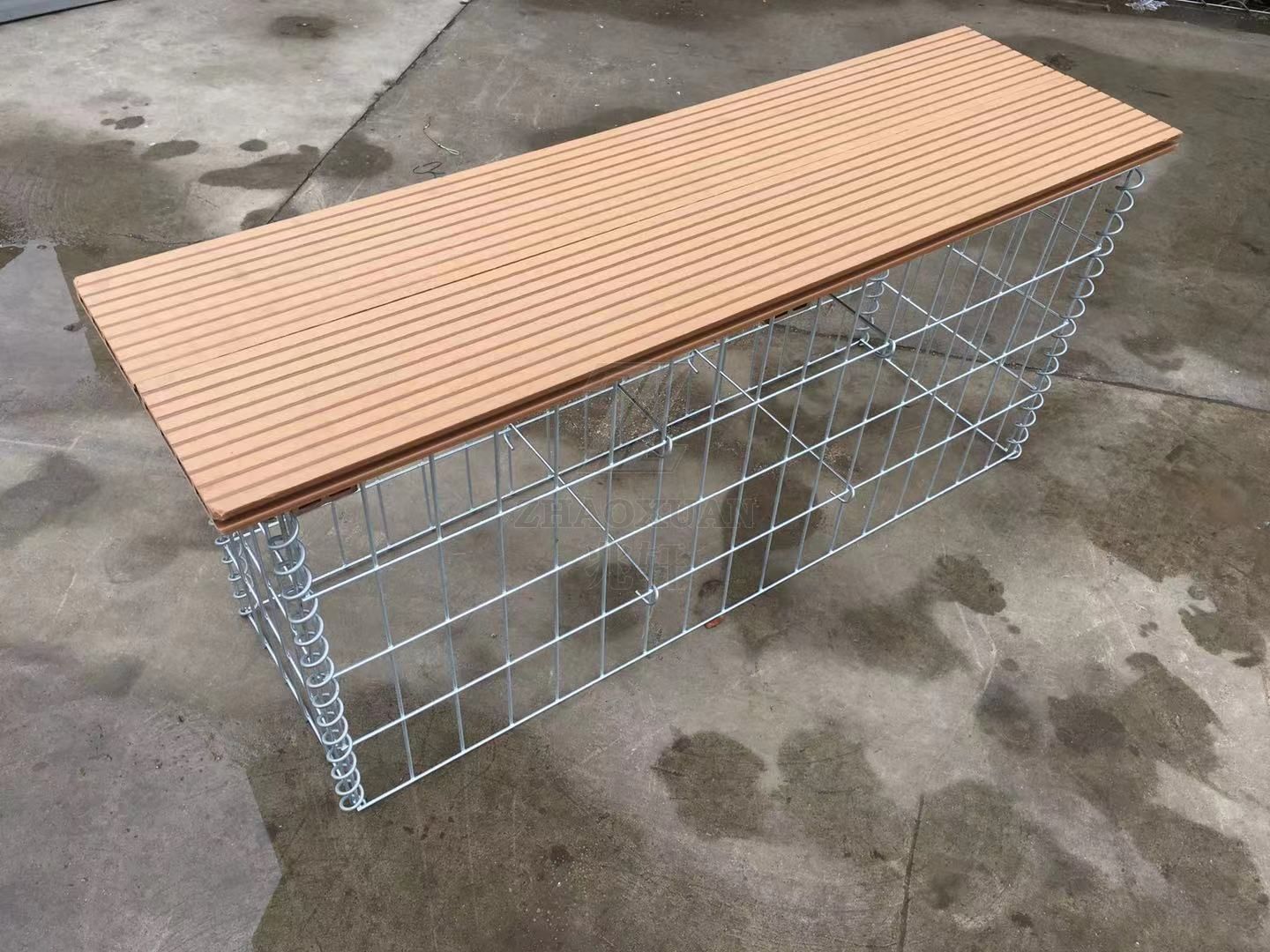

Welded Mesh Gabion Box With Board

The gabion is a cage, cylinder, or box filled with rocks, concrete, or sometimes sand and soil for use in civil engineering, road building, military applications and landscaping.

Gabion boxes can be supplied in various lengths, widths and heights. In order to strengthen the boxes, all the edges of the structure shall be selvedged with wire of bigger diameter.

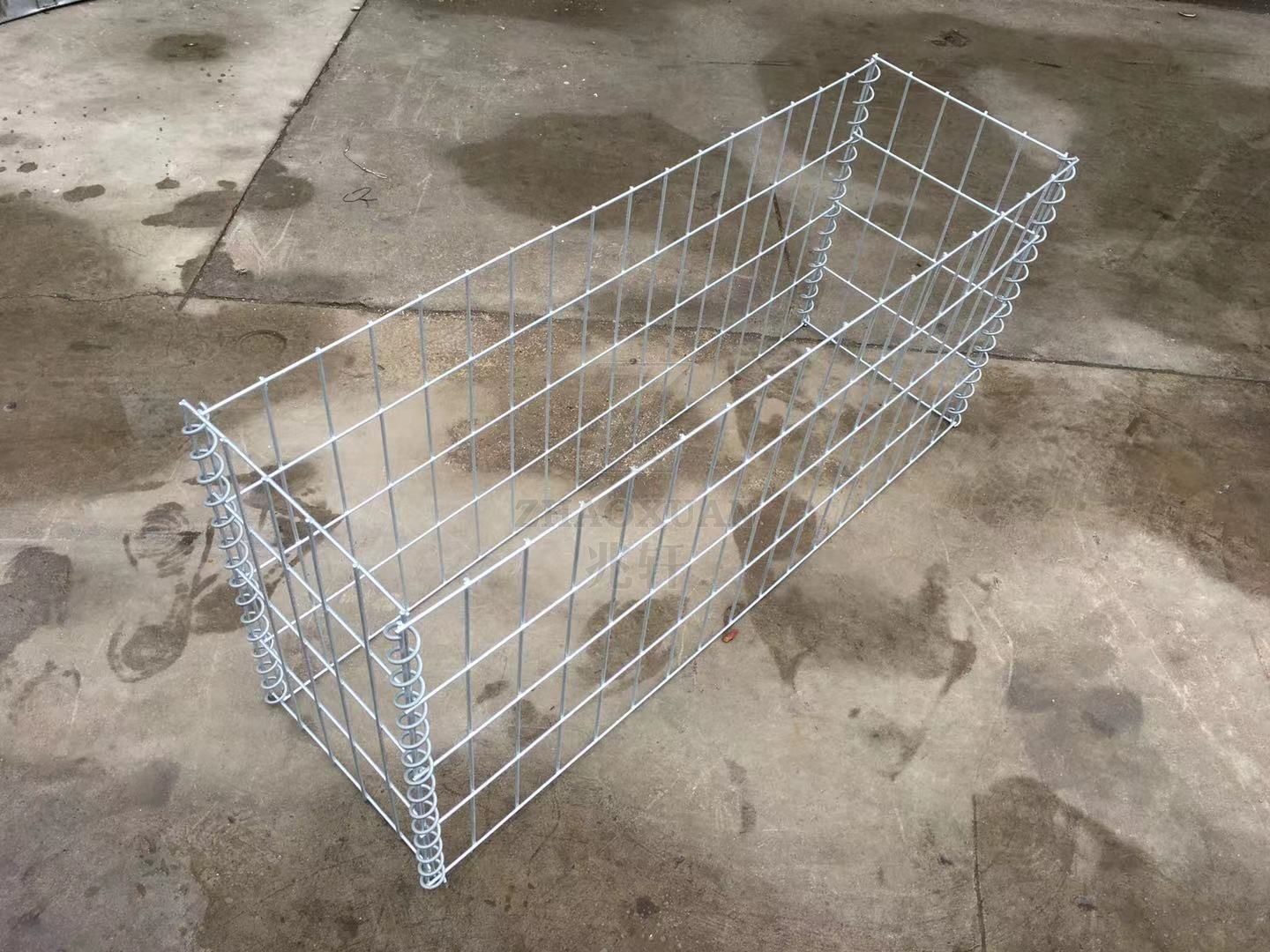

Welded gabion basket is made from welded wire mesh.

They can be filled on site with hard durable stone materials to form mass gravity retaining structures. Owing to their inflexibility, welded gabions can not adapt to differential settlement or be used in water courses. In comparison with woven wire gabions, welded gabions offer a higher strength. In order to meet different project requirements, various wire diameters and unit sizes are available for welded gabion boxes.



Share

Product Description

Product name

    wire diameter

        mesh size

         gabion size

welded gabion

           3-4mm

50X50,75X75,50X100

   1*1*0.5,1*1*1,etc

welded gabion

           4mm

50X50,75X75,50X100

   1*1*1,2*1*0.5,etc

welded gabion

           4-5mm

50X100,75X75,100X100

   2*1*0.5,2*1*1,etc



Application

Strengthening the stability of the river beds;Protecting riverbeds from being washed away;Providing the prefixed value of coarseness modulus of river banks;Protecting the trees and zoology of slopes and banks.
