Galvanized Hexagonal Wire Netting Chicken Wire Mesh 25mm Mesh Size

Hexagonal wire mesh with high quanlity

1)Wire Materials for Hexagonal Wire Netting:

High quality low carbon steel wire, stainless steel wire, etc.

2)Weaving Patterns:

Straight twist, reverse twist, double twist.

3)Process of Hexagonal Wire Netting:

Galvanized after weaving or galvanized before weaving.

4)Finish of Hexagonal Wire Netting:

Electric galvanizing, hot-dip zinc plating, stainless steel or PVC coated.

Inquire Now Next Product

Product Description

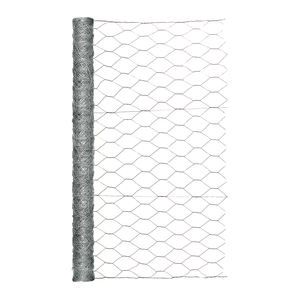

Galvanized hexagonal wire mesh
Specifications			Wire Diameter		Width
Mesh(inch)	Size(mm)	Limit Error	BWG	Metric	BS	Metric
3/8”	10	+0.5	BWG27-23	0.40-0.6mm	1”-6”	0.1-2m
1/2”	13	-1.5	BWG27-22	0.4-0.7mm	1”-6”	0.1-2m
5/8”	16	+1.0/-2.0	BWG27-22	0.4-0.7mm	1”-6”	0.1-2m
3/4”	20	+1.0/-2.5	BWG26-20	0.46-0.9mm	1”-6”	0.1-2m
1”	25	+1.5	BWG25-19	0.5-1.0mm	1”-6”	0.1-2m
1-1/4”	31	-3.0	BWG24-18	0.56-1.2mm	1”-6”	0.2-2m
1-1/2”	40	+2.0/-4.0	BWG23-16	0.6-1.65mm	1”-6”	0.2-2m
2”	51	+2.0/-4.0	BWG22-14	0.7-2.0mm	1”-6”	0.2-2m
3”	76	+2.0/-4.0	BWG21-14	0.8-2.0mm	1”-6”	0.3-2m
4”	100	+2.0/-4.0	BWG20-12	0.9-2.8mm	1”-6”	0.5-2m
