Wire Mesh
– High-Security Perimeter Protection
A cutting-edge security solution combining:
✓ Ultra-Sharp Steel Blades: Precision-stamped for consistent deterrent effect
✓ High-Tensile Core Wire: Galvanized steel wire (2.5mm) for structural integrity
✓ Durable Coating: Hot-dip galvanized
Product Description

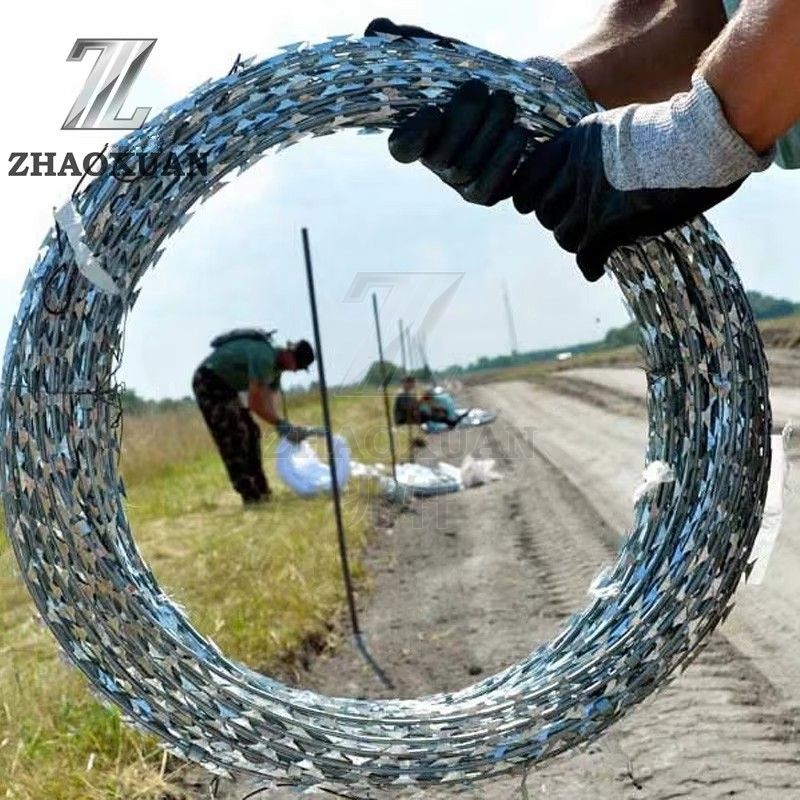

Concertina razor wire is a high-security barrier constructed from ultra-sharp steel blades and high-tensile galvanized wire, designed to deter and prevent unauthorized access. Its coiled, overlapping design creates multiple layers of defense, making it one of the most effective anti-scaling and anti-intrusion solutions available.
✔ Military-Grade Deterrence – Razor-sharp blades inflict severe cuts, discouraging climbers.
✔ High-Tensile Core Wire – Reinforced with 3.0mm–4.0mm galvanized steel for durability.
✔ 360° Protection – Coiled design ensures no weak points for intruders to exploit.
✔ Weather-Resistant – Hot-dip galvanized for corrosion resistance.
✔ Quick Installation – Easily mounted on walls, fences, and gates for immediate security.
Basic Information
* Material: Hot Dipped Galvanized sheet and Hot Dipped Galvanized Wire/Stainless Steel
* Core Wire Diameter: 2.5±0.1mm
* Razor Barbed sheet thickness: 0.5±0.05mm
* Razor Loop Diameter: 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 960mm, 1000mm. 450mm (3 clips), 500mm (3 clips), 900mm (5
clips) are the usually used sizes
* Razor Barbed Wire per coil weight: Be produced as customers requirements.
* Meters of per coil: the greater the stretch strength, the greater the distance between them.
Common Specifications
| Standard production type | Outer dia. | No. of loops | Standard length per coil | Type | Notes | ||
| 450mm | 33 | 7-8m | CBT-60/65 | single coil | |||
| 500mm | 56 | 12-13m | CBT-60/65 | single coil | |||
| 700mm | 56 | 13-14m | CBT-60/65 | single coil | |||
| 960mm | 56 | 14-15m | CBT-60/65 | single coil | |||
| 450mm | 56 | 8-9m | BTO-12/22/25/30 | cross type | |||
| 500mm | 56 | 9-10m | BTO-12/22/25/30 | cross type | |||
| 600mm | 56 | 10-11m | BTO-12/22/25/30 | cross type | |||
| 600mm | 56 | 8-10m | BTO-12/22/25/30 | cross type | |||
| 700mm | 56 | 10-12m | BTO-12/22/25/30 | cross type | |||
| 800mm | 56 | 11-13m | BTO-12/22/25/30 | cross type | |||
| 900mm | 56 | 12-14m | BTO-12/22/25/30 | cross type | |||
| 960mm | 56 | 13-15m | BTO-12/22/25/30 | cross type | |||
| 980mm | 56 | 14-16m | BTO-12/22/25/30 | cross type | |||
| Razor blade type and specifications | Blade Style | Blade Thickness (mm) | Wire Dia. (mm) | Barb Length (mm) | Barb Width (mm) | Barb Spacing (mm) |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 | |
| BTO-15 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 | |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 | |
| BTO-30 | 0.5±0.05 | 2.5±0.1 | 30 | 18 | 45±1 | |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 | |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
Installation Instruction

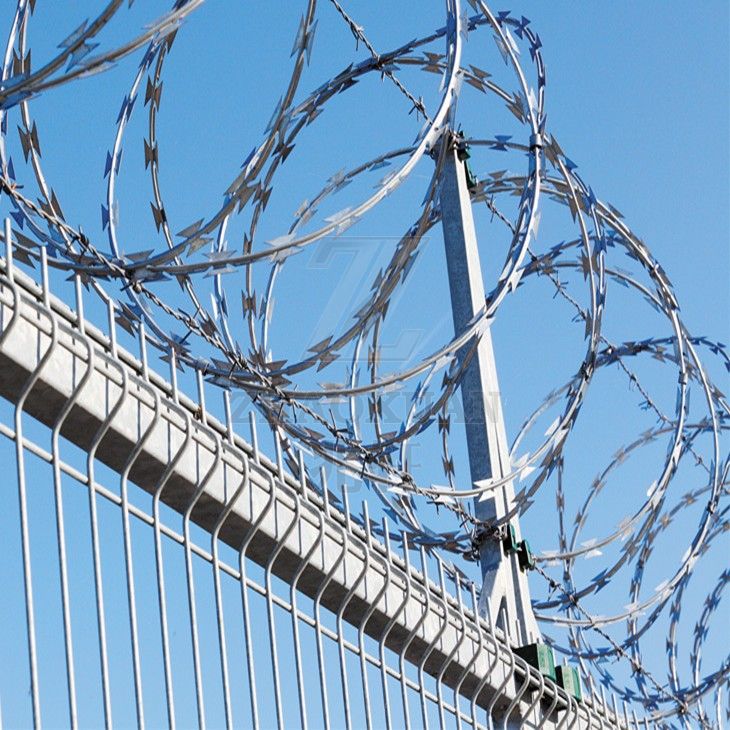

Wall-Mounted – Fixed atop walls or fences for anti-climbing defense.
Ground Deployment – Used as mobile barriers for temporary security.

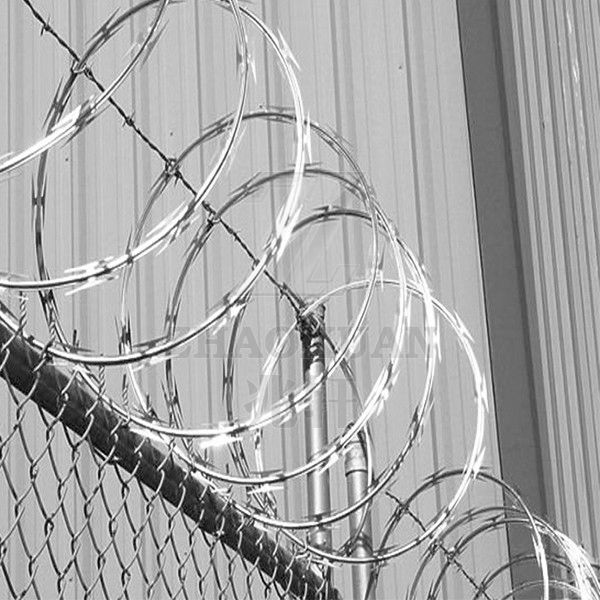

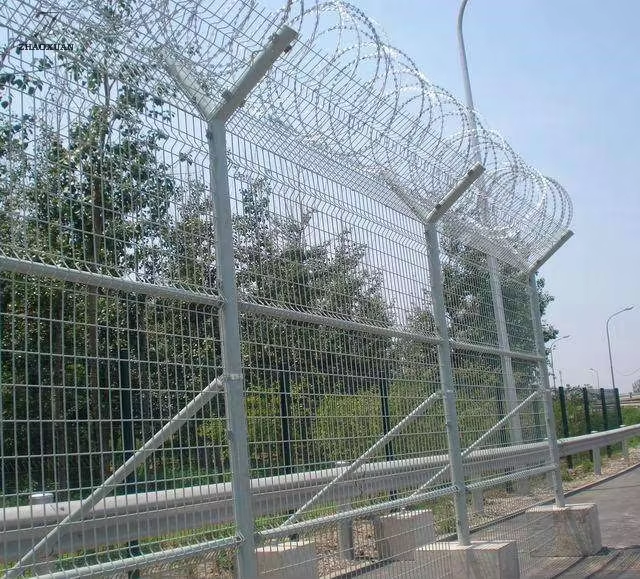

Fence Integration – Combined with chain-link or welded mesh fencing for enhanced protection.
Factory Certifications
ISO 9001 ISO 14001 ISO 45001
Application
Prisons & Detention Centers – Prevents escapes and unauthorized entry.
Military & Government Facilities – Protects high-security zones.
Industrial Sites & Warehouses – Secures perimeters against theft and vandalism.
Private Estates & High-Risk Areas – Deters trespassers and burglars.
