Chain Link Fence – Affordable, Durable & Versatile
For both permanent and temporary applications:
Ideal for:

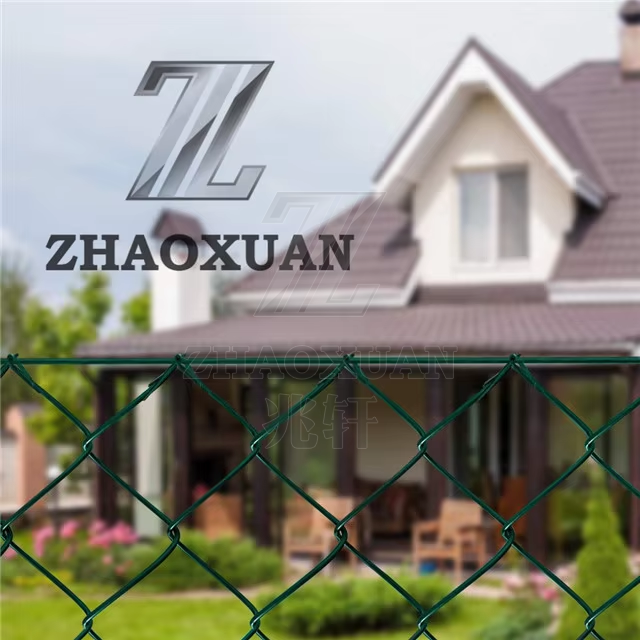

✅ Residential (backyards, pet enclosures)

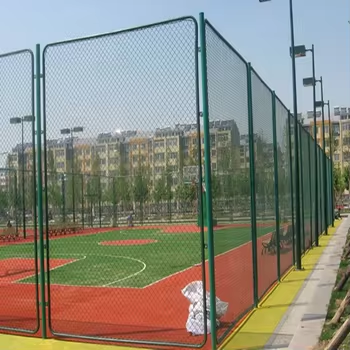

✅ Commercial (parking lots, storage areas)
✅ Industrial (construction sites, perimeter security)
Why Choose Chain Link Fence:
✅ Budget-Friendly – Lowest cost per foot vs. other fences
✅ Long-Lasting – Rust-resistant, long lifespan
✅ Customizable – Available in different heights
✅ Quick Installation – Modular panels for easy setup
Product Description

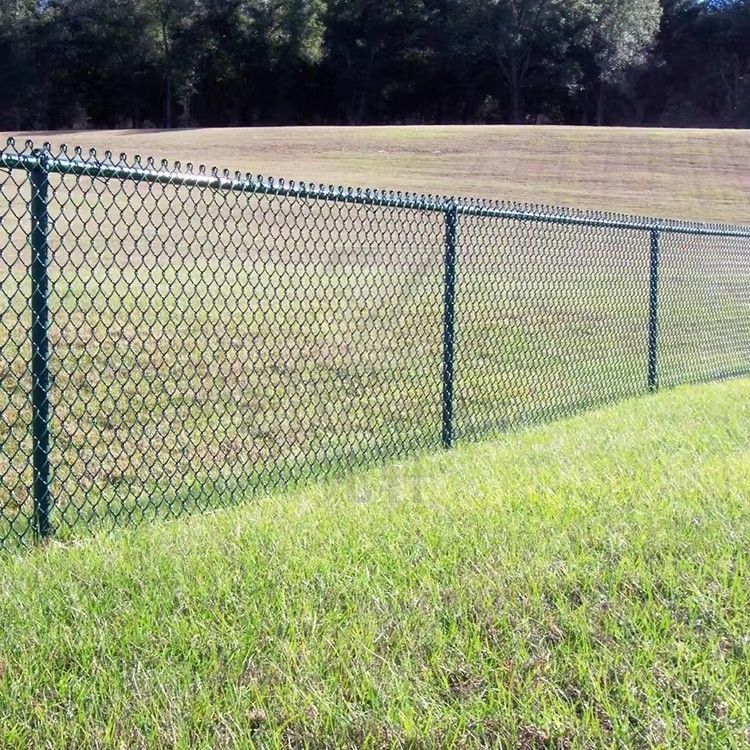

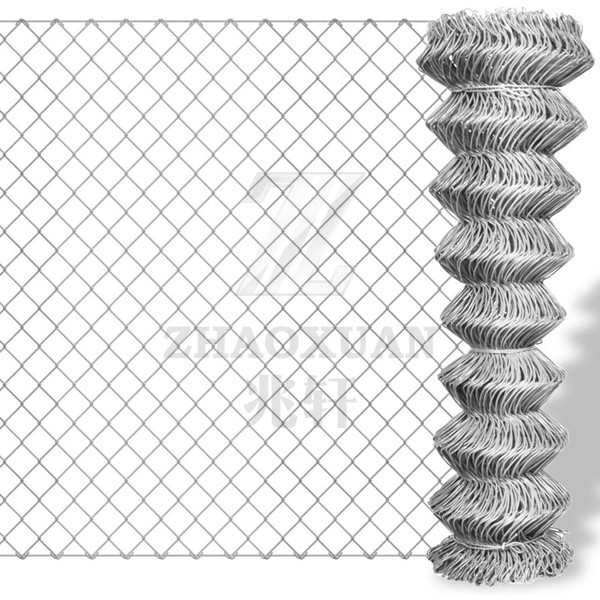

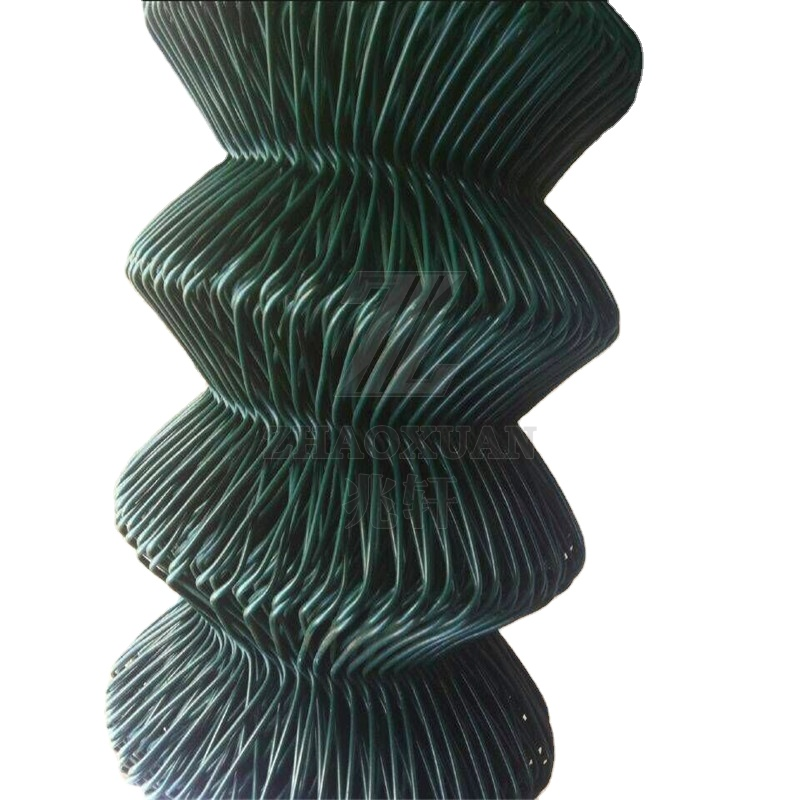

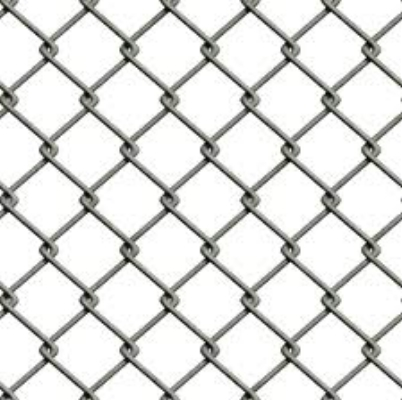

Chain link fence is a cost-effective, low-maintenance security solution made from interwoven galvanized or PVC-coated steel wires.

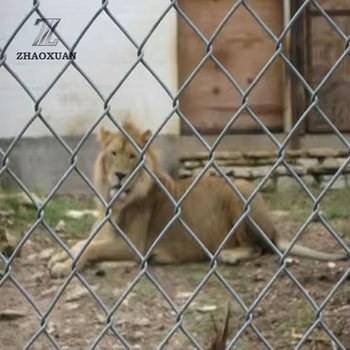

Its open diamond mesh design provides visibility while creating a sturdy barrier.
Common Specifications
| Surface treatment | Min. | Max. | ||||
| Electric galvanized | 15 g/m2 | 25 g/m2 | ||||
| Hot dipped galvanized | 30 g/m2 | 366 g/m2 | ||||
| PVC/PE coating | 400 μm | 600 μm | ||||
| Specifications | Wire Dia. (mm) | Mesh Size (mm) | Length (m) | Panel Height (m) | Post Height (m) | Post |
| 1.8 2.0 2.5 3.0 3.5 4.0 4.5 | 35*35 40*40 50*50 60*60 75*75 100*100 | 10 15 20 25 30 Or longer | 1.0 | 1.5 | Round tube post: diameter of 40, 48, 50, 63, 76 mm Mushroom shaped post Y post T post Or frame the panels and then fix them to the posts | |
| 1.2 | 1.7 | |||||
| 1.5 | 2.0 | |||||
| 1.8 | 2.3 | |||||
| 2.0 | 2.5 | |||||
| 2.5 | 3.0 | |||||
| 3.0 | 4.0 | |||||
| 4.0 | 5.0 | |||||
| 5.0 | 6.0 | |||||
Services
✅ Manufacturing & Supply
Materials: Galvanized, PVC Coated
Posts & Fittings:
Posts: Round or mushroom or Y/T post, with optional concrete footings.
Accessories: Tension wire, rails, caps, and hinges.
✅ Installation Instruction
Stretching and securing mesh with tension bars.
Sloped Terrain: Adjustable post heights for uneven ground.
Gates & Access Points: Single/double swing gates.
✅ Customization & Enhancements
Barbed Wire Topping: 45° or 90° angled arms.
Razor Ribbon: For high-security applications.
Privacy Slats: Inserted into mesh for visual screening.
Factory Certifications

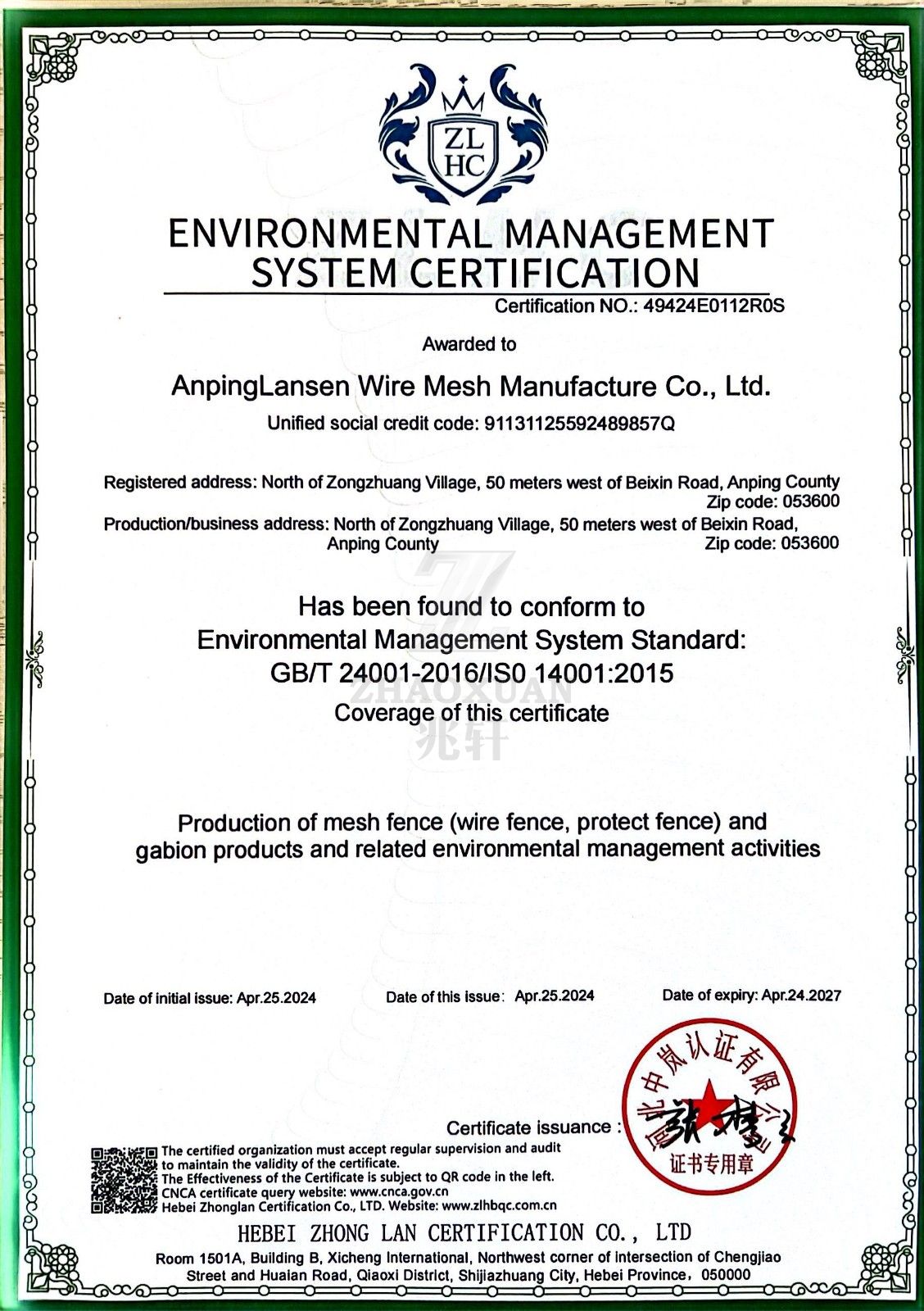

ISO 45001 ISO 9001 ISO 14001
