2D Double Wire Mesh Fence

– Robust & Versatile Perimeter Security

Ideal for:

✅ Industrial & Commercial Sites

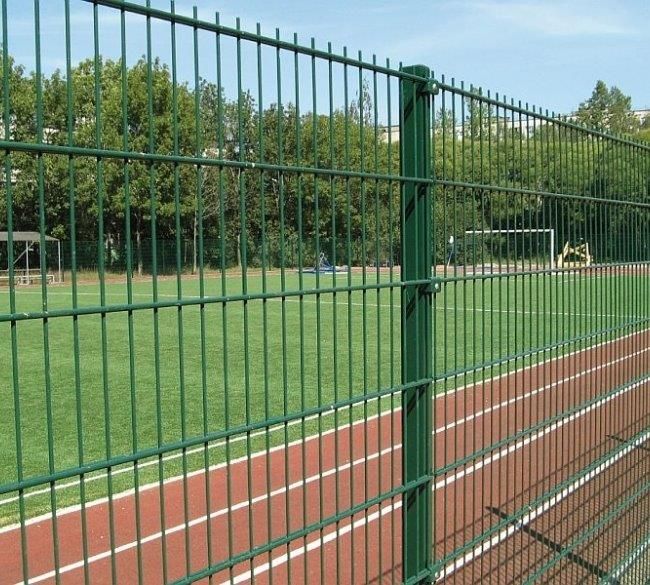

✅ Sports Facilities

✅ High-Security Applications

Why Choose Double Wire Fence?

✅ Superior Stability – Dual-wire design enhances rigidity and load resistance

✅ Expandable Security – Easily integrates with barbed wire/razor coils to deter intruders

✅ All-Weather Durability – Hot-dip galvanized, electric galvanized or powder-coated finishes available

Inquire Now Next Product

Product Description

The double wire fence is a premium welded mesh system featuring dual horizontal wire reinforcement for unmatched strength and durability. Originally developed for European security standards, this versatile fencing solution now provides superior protection worldwide.

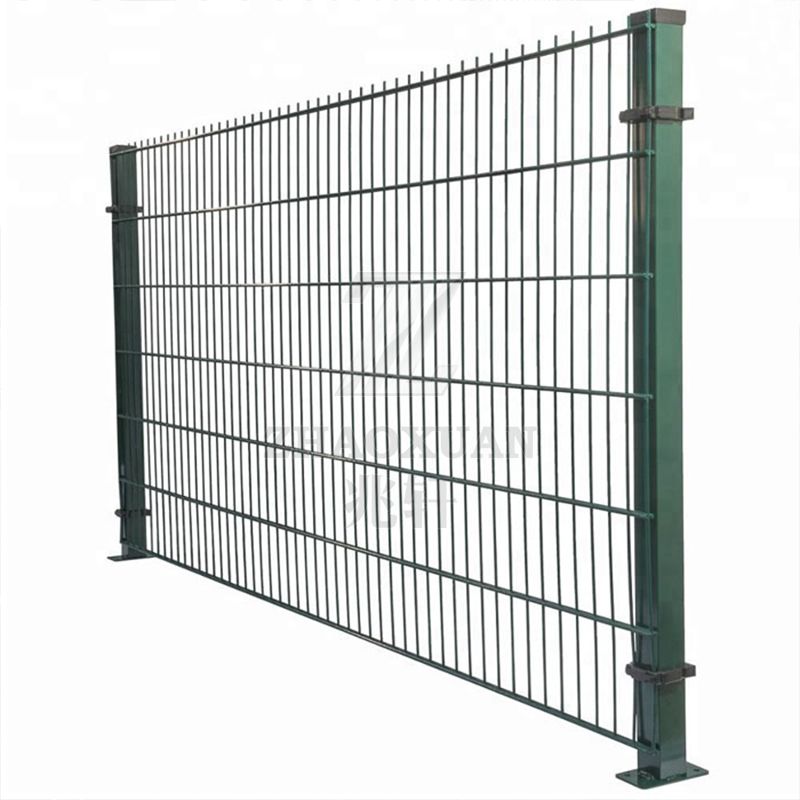

2D Double Wire Mesh Fence

1. Manufacturing & Supply

Material Options: Galvanized, Powder Sprayed Coated

Mesh Types:

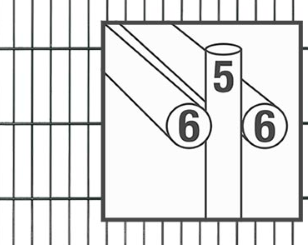

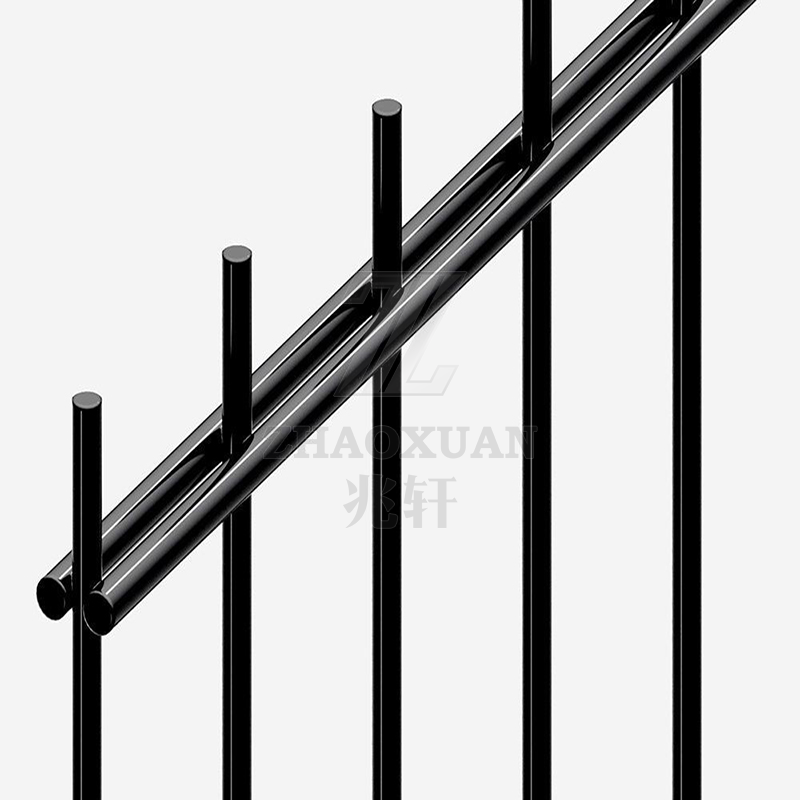

Double Wire Mesh: Two parallel wires welded for extra strength.

Custom Sizes: Panel height, width, and wire diameter (e.g., 4mm–6mm).

2. Installation Services

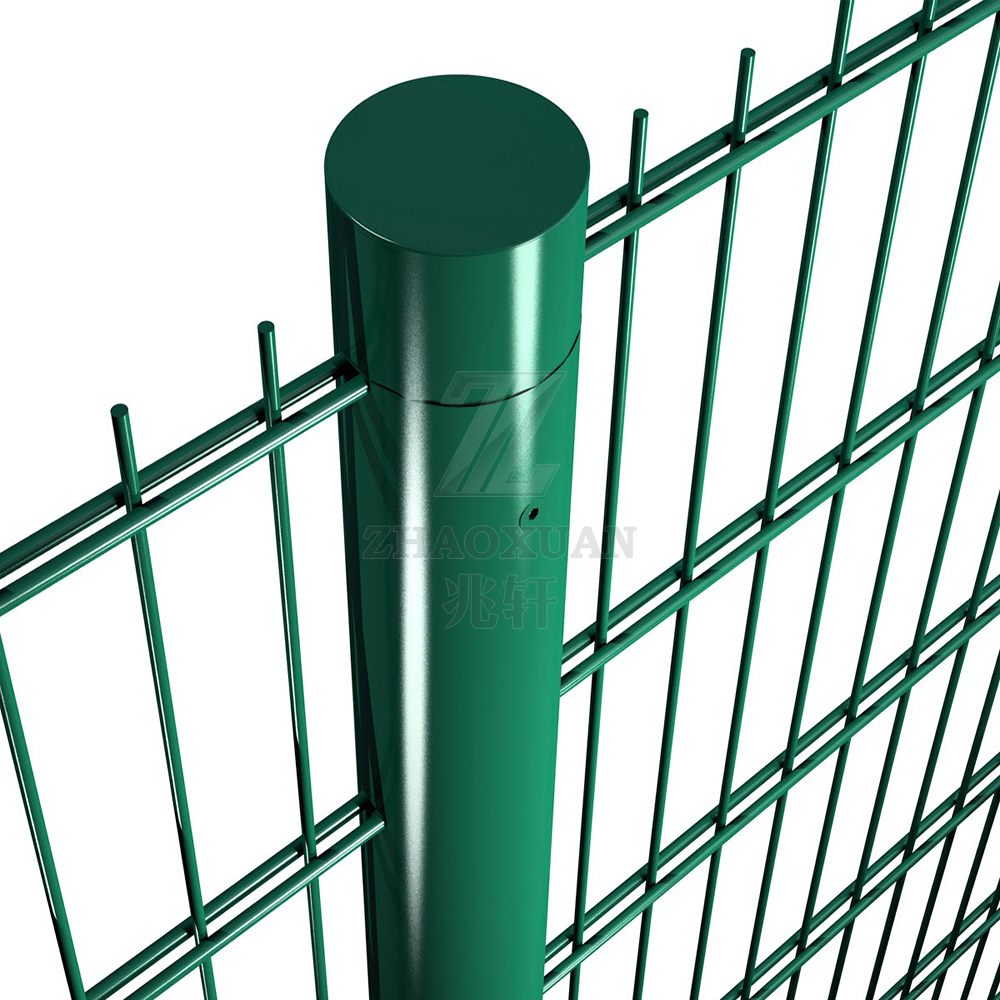

Steel Posts: Round or square, with concrete footings.

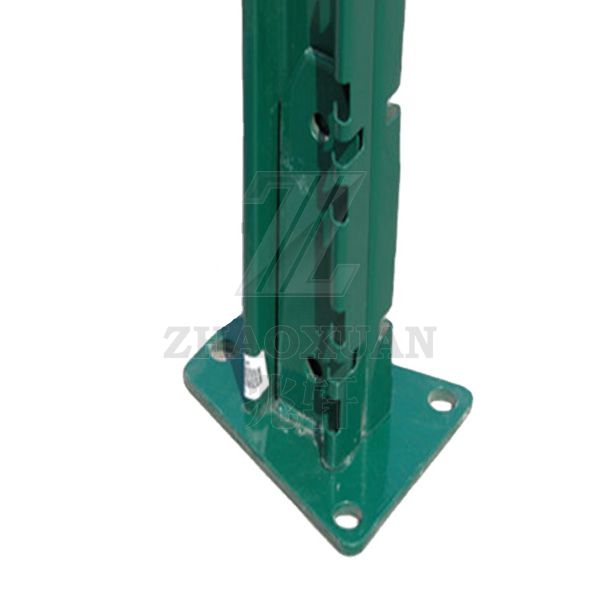

Adjustable Bases: For uneven terrain.

Gates & Access Points: Matching double-wire mesh gates with locks.

3. Security Enhancements

Barbed Wire Topping: Extra deterrent for anti-climbing.

Razor Mesh Add-Ons: For high-security zones.

Anti-Cut Features: Thicker wires or tamper-proof welding.

Specifications

Surface treatment			Min.			Max.
	Electric galvanized		20 g/m²			60 g/m²
	Hot dipped galvanized		35 g/m²			700 g/m²
	Powder sprayed		100 μm			120 μm
Specifications	Wire Dia. (mm)	Mesh Size (mm)	Panel Width (m)	Panel Height (m)	Post Height	Post	Fittings

	6/5/6 8/6/8	200×50	2.0	0.63 0.83 1.03 1.23 1.43 1.63 1.83 2.03 2.23 2.43	1.0 1.2 1.4 1.6 1.8 2.0 2.3 2.5 2.8 3.0	H shaped post Peach shaped post	No clip Rainhat


			2.2

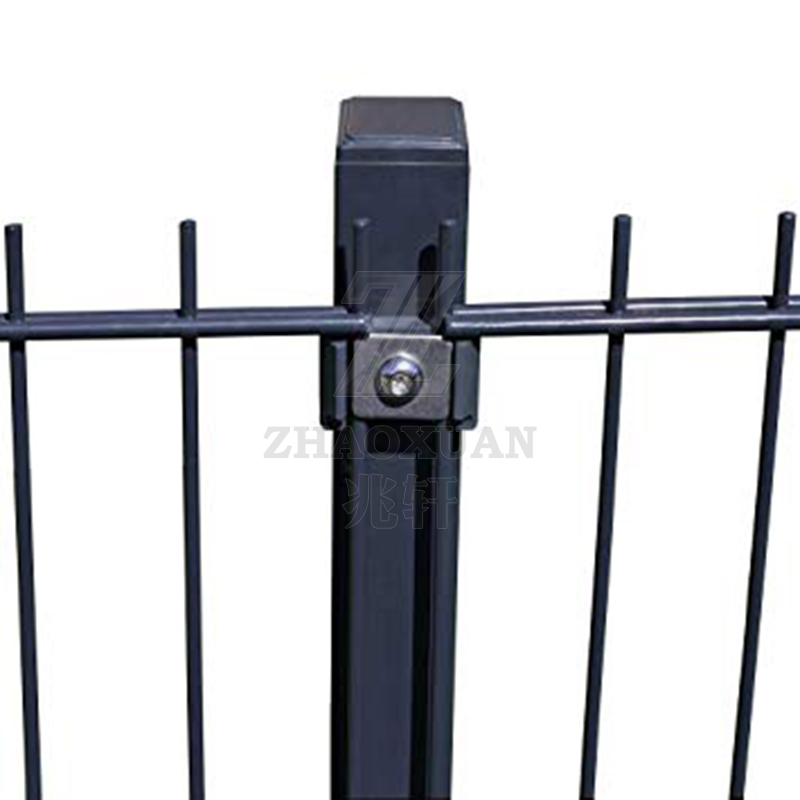

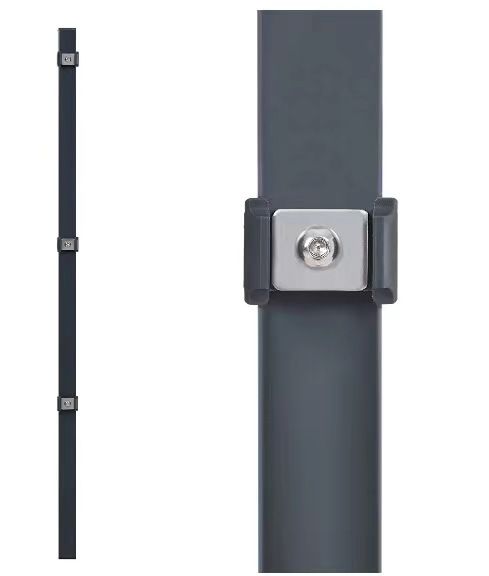

			2.5			Square post	Steel clip Plastic clip Rainhat


			3.0

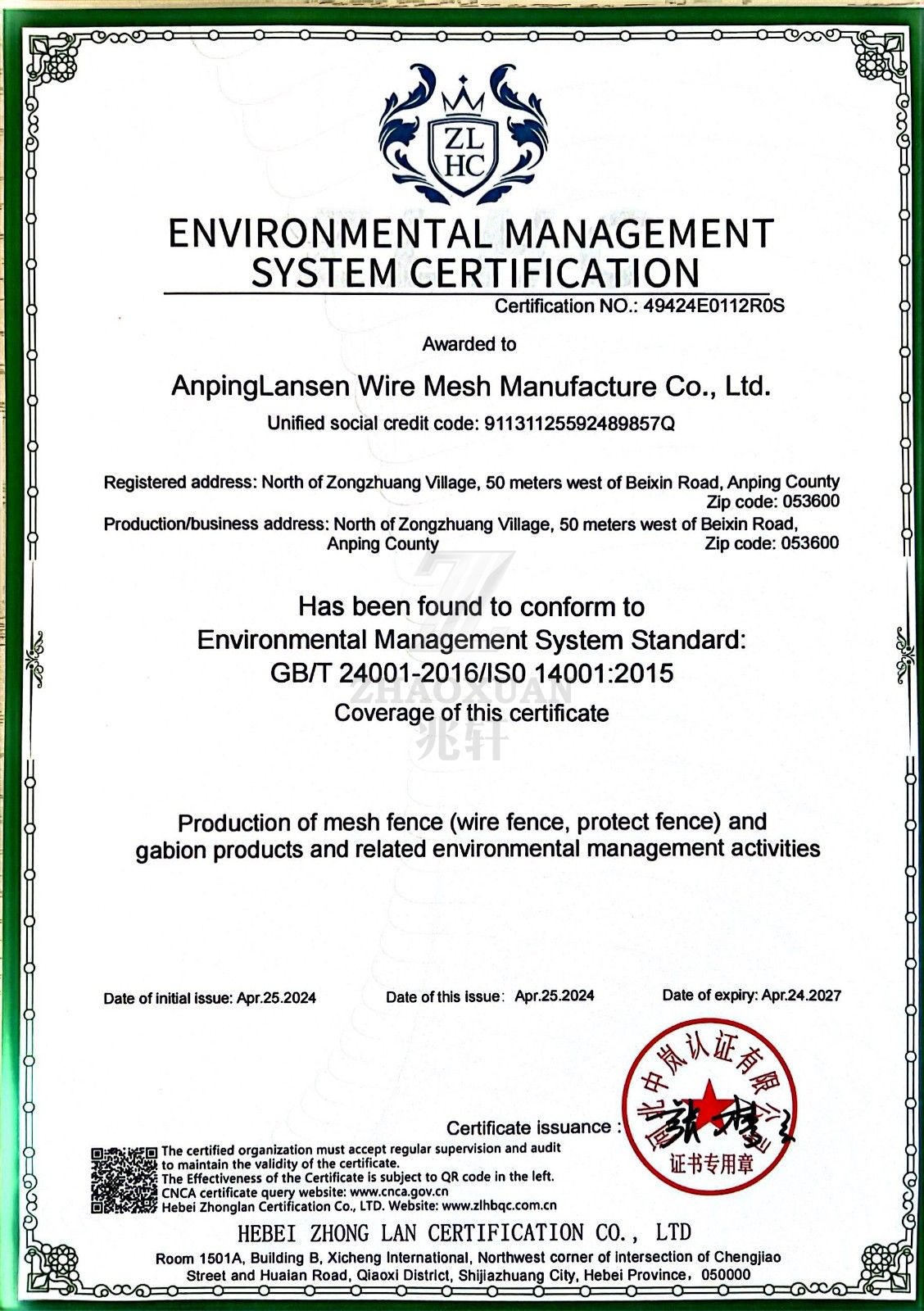

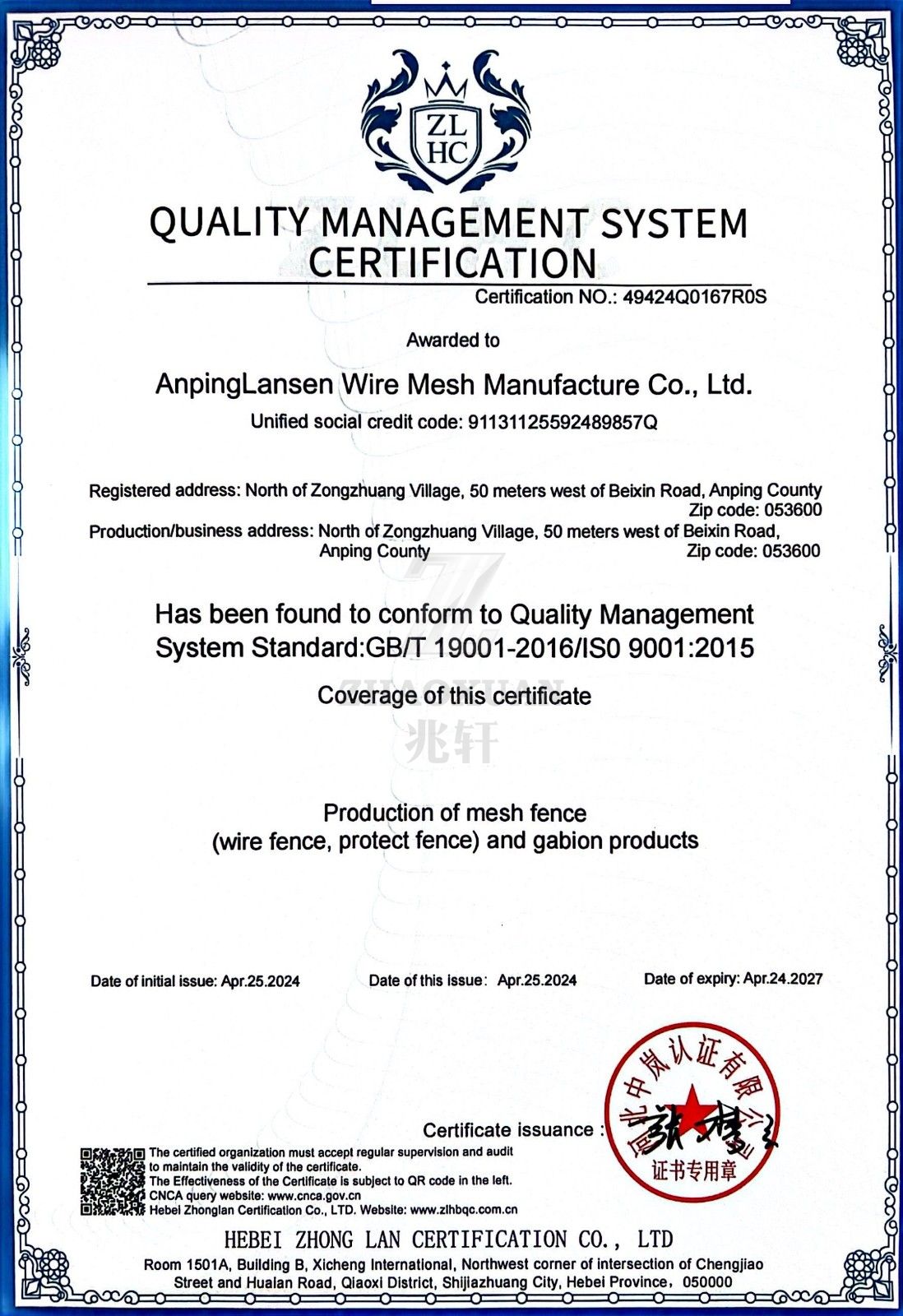

Factory Certifications

ISO 45001 ISO 9001 ISO 14001

2D Double Wire Mesh Fence

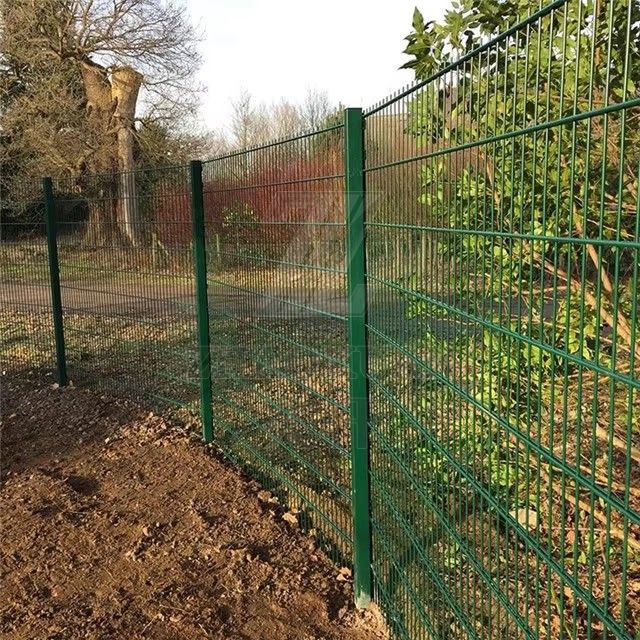

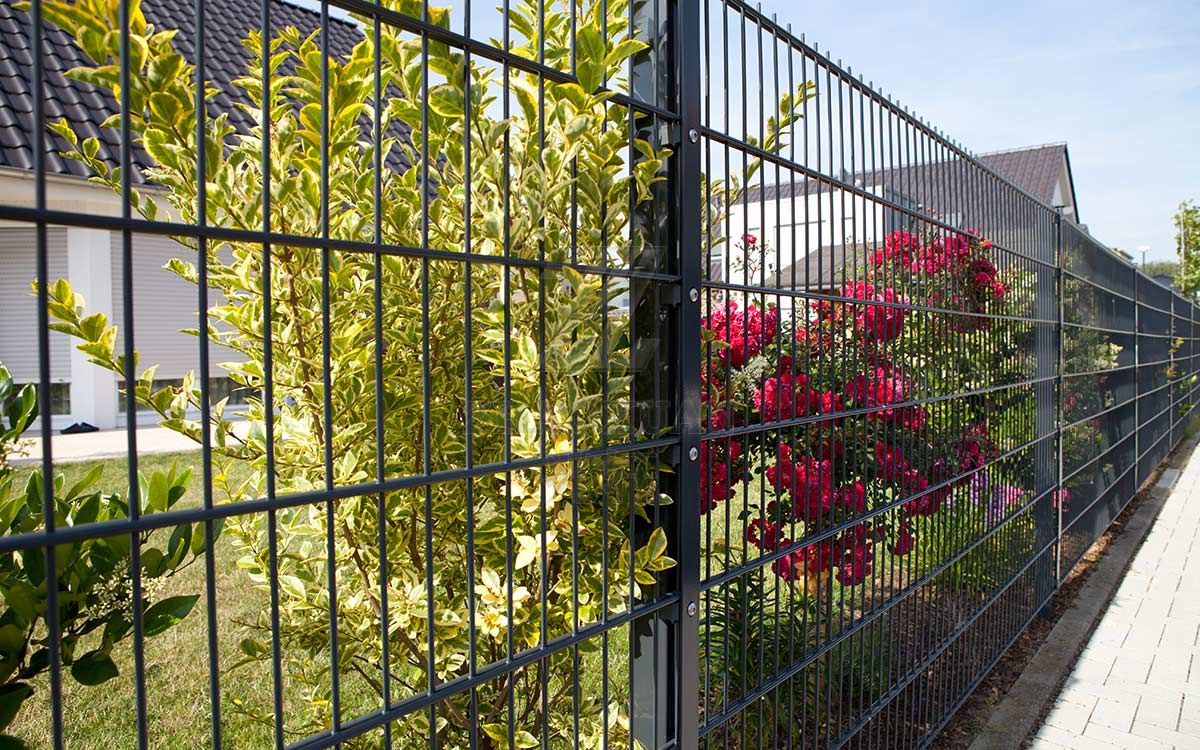

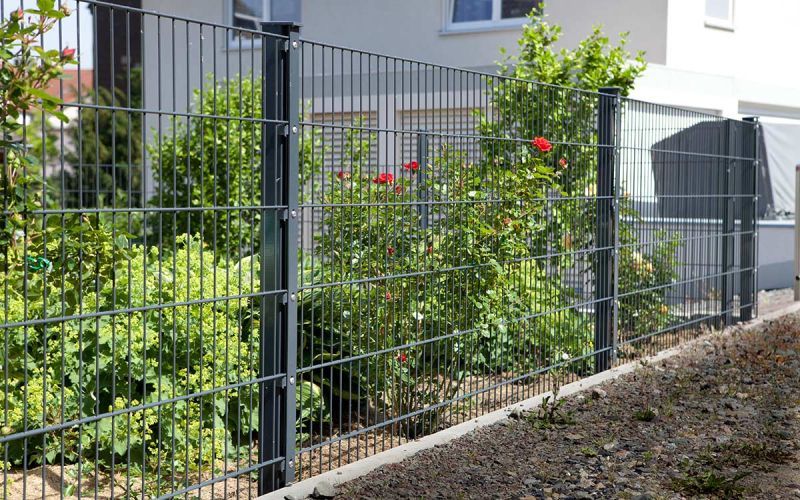

Application

2D Double Wire Mesh Fence
